PRODUCT |
|
|
|

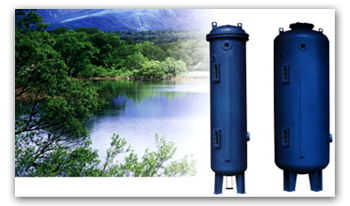

Mixed Bed |
■Overview
Mixed bed is the short title of positive and negative ion exchanger resin mixed bed. It is one of the necessary equipments for producing pure water and ultrapure water. It is mainly used for removing the ion in water in depth, to make the resistivity of water up to MΩ.cm(25℃）even to 18MΩ.cm(25℃). Notice: the resistivity of theoretical pure water is 18.3MΩ.cm(25℃）.
Our company’s mixed bed is designed and manufactured by the special technology imported from USA PERMUTIT company. Its casing adopts high quality carbon steel or stainless steel with natural rubber lining. It is equipped with advanced double-dish water distributor with uniform water distribution and low resistance. The small-scale equipment also applies organic glass barrel material.
The regenerative method adopts advanced regenerative technology with synchronous two-way internal jet without top pressure, in addition easy and rapid to regenerate, few pollution, low labor intensity and high reproducibility. The matched ejector pump is not need to make up a lot of acids and alkalis when regenerate, only need concentrated acid and concentrated base, which is omitted acid preparation box. The size of alkali preparation box is as 1/4 of normal size, which has reduced the work capacity of regeneration and floor area. The discharge liquid is alkaline, the pollution characteristics of which is lower than strong acidity.
According to different needs, the mixed bed is made of two types as rough mixed bed and fine mixed bed. The front one is used for making pure water below 10MΩ.cm(25℃）, after the both is combined, the ultrapure water can be made until 18MΩ.cm(25℃）.
■ Features：
□ The structure is advanced with small resistance and low energy consumption;；
□ the generative method is advanced and dependable, save time, save labour, save material and less covering area;
□ the quality of water output is high and steady. Air flushing type medium pressure filter |
| |
|
|
|
| |
Specifications
Specifications and models |
MB-300 |
MB-400 |
MB-450 |
MB-500 |
MB-600 |
MB-700 |
MB-800 |
MB-900 |
MB-1000 |
MB-1200 |
MB-1400 |
Production stoodm3/h |
1（2） |
2（4） |
3（5） |
4（7） |
5（10） |
5（15） |
10（20） |
15（25） |
20（30） |
25（40） |
30（50） |
Loadkg |
800 |
1200 |
1700 |
2400 |
3200 |
4000 |
4800 |
6000 |
7000 |
9000 |
11000 |
Other parameter table
Name |
Model specifications |
Shell material |
Work pressure |
Table processing |
Handling appearance |
（初/精）Mixed Bed |
See table above |
Carbon steel or stainless steel |
0.6MPa |
Rubber lining |
Painting |
|
|
|
|
